OCPP Authentication Configuration Guide

OCPP Authentication Configuration Guide#

For CPO/CSMS operators configuring charger authentication behavior.

Note on Product-Specific Settings#

This guide covers standard OCPP 1.6 configuration settings. When troubleshooting RFID authorization use cases, also consider vendor-specific settings such as FreeVendMode that may affect authorization behavior.

Common Configuration Settings affecting authorization#

Setting

Purpose

LocalAuthorizeOffline

Can the charger authenticate users locally when offline? (default: true)

LocalAuthListEnabled

Should the charger maintain a local list of approved users? (default: true

AuthorizationCacheEnabled

Should the charger remember server responses? (default: false)

LocalPreAuthorize

Should the charger start charging immediately if user is in local cache? (default: false)

ConnectionTimeOut

How long to wait for EV driver to physically plug cable after authorization? (default: 300 seconds)

AuthorizationTimeout

How long to wait for CSMS response when a UID is sent for authorization? (default: 20 seconds)

AllowOfflineTxForUnknownId

When offline, allow any RFID token to be used to start charging (default: false)

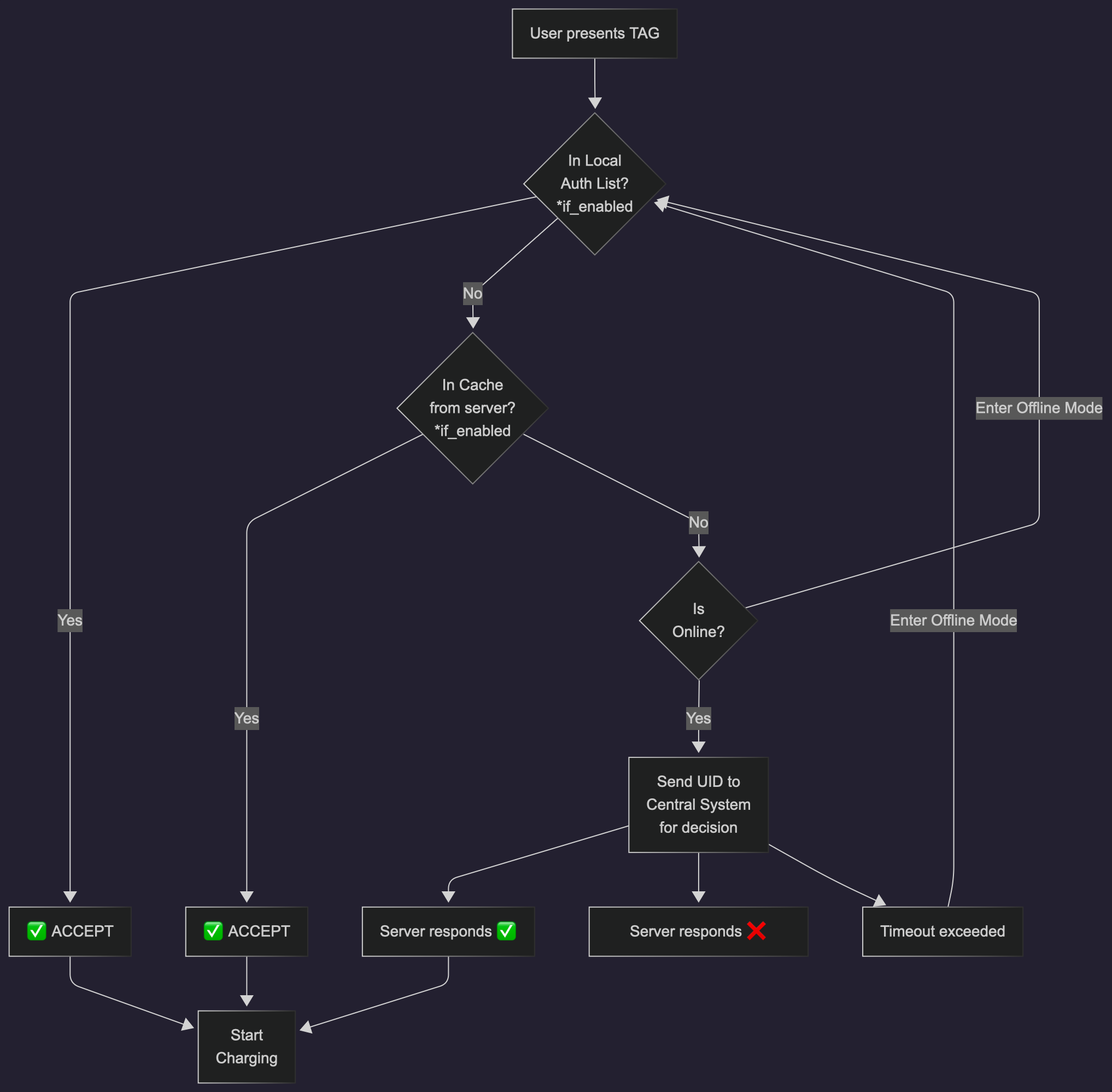

Authentication Priority#

When a charger authenticates a user, it checks sources in this order:

NOTE: Any use of Cst_FreeVendActive = True will override all below and allow all users to charge without authentication.

../_images/Auth-Flow.png

Image 1: Authorization Flow#

Key rule: If a user is on the Local List, the charger never stores them separately in cache. Local List is always checked first.

Detailed Parameter Descriptions#

ConnectionTimeOut (Default: 300 seconds)#

When it matters: During the authorization flow, after a user’s RFID card is tapped and authorization succeeds.

What happens:

  1. User taps RFID card → Authorization request sent to CSMS

  2. CSMS approves → Charger enters “Preparing” state and starts counting down

  3. ConnectionTimeOut timer starts (300 seconds = 5 minutes)

  4. Driver must physically plug the cable into the car within this window

  5. If cable not connected within 300 seconds → Charger automatically cancels the transaction and returns to “Available”

Why it exists: Prevents chargers from staying in “Preparing” state indefinitely while waiting for drivers who change their minds or walk away.

Practical impact: If you reduce this to 60 seconds, drivers have only 1 minute to plug in after tapping their card. If you increase to 600 seconds, they have 10 minutes.

AuthorizationTimeout (Default: 20 seconds)#

When it matters: When the charger sends a UID to the CSMS for authorization.

What happens:

  1. User taps RFID card (presenting a UID)

  2. Charger sends Authorize.req message with the UID to your CSMS

  3. AuthorizationTimeout countdown begins (default: 20 seconds)

  4. Charger waits for CSMS response: Accept or Reject

  5. If no response arrives within timeout → Charger treats it as an offline condition

If timeout occurs:

  • Charger applies LocalAuthorizeOffline logic (if enabled)

  • May consult Local List or Cache

  • If no offline source available → Denies charging

Practical impact:

  • Set too short (e.g., 5 seconds): Network hiccups cause authorization failures

  • Set too long (e.g., 60 seconds): Poor UX; users wait a minute for response

  • 20 seconds is typical balance for most networks

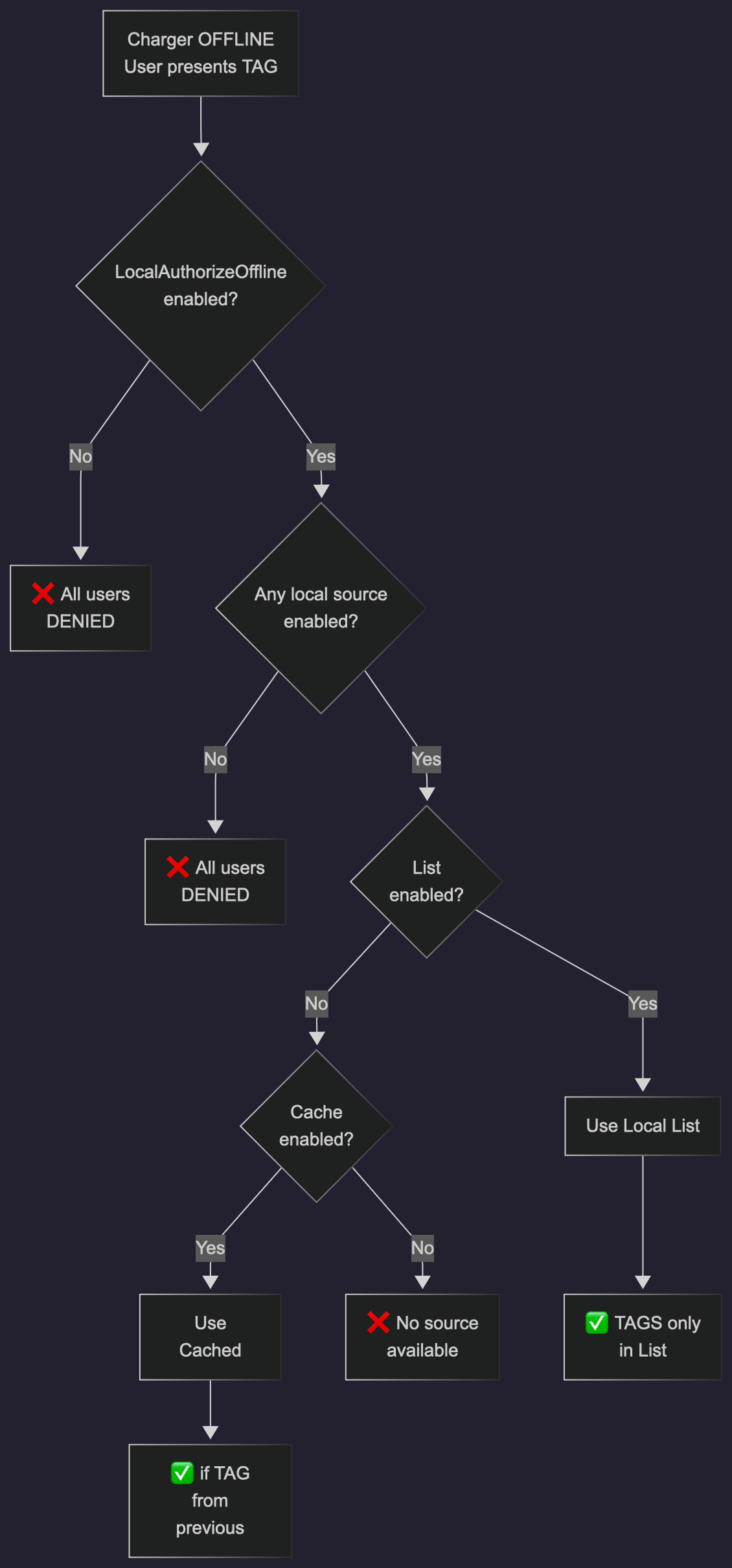

Offline Charger Behavior#

What happens when the charger loses internet connection?

../_images/OfflineMode.png

Image 1: Offline Authorization Flow#

Online Charger Behavior#

What happens when the charger is online?

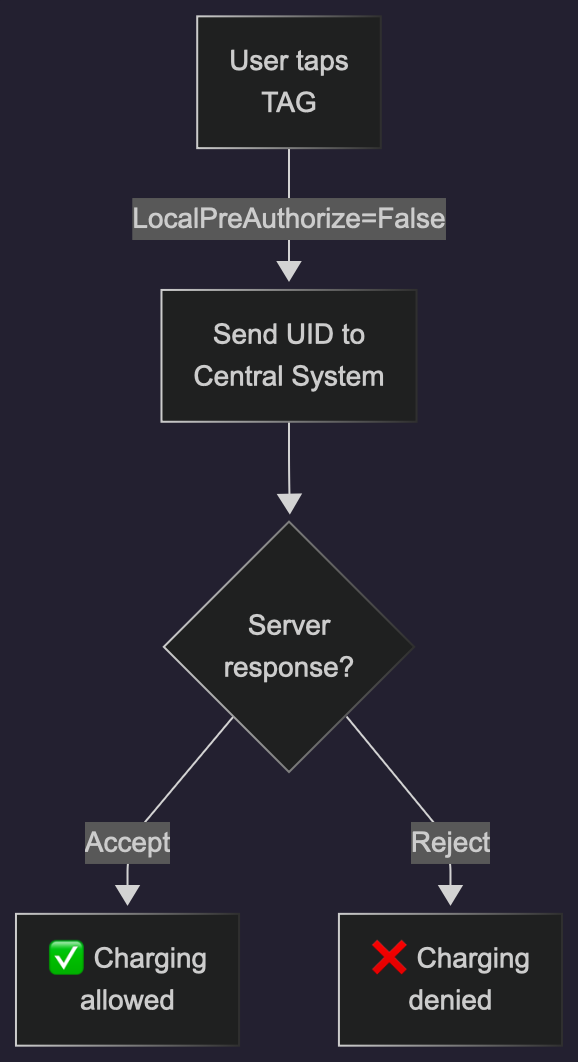

Standard Mode (LocalPreAuthorize = False)#

../_images/PreAuthOff.png

Image 2: Remote Authorization Flow#

Effect: Every authentication goes to your central system. Every decision is current.

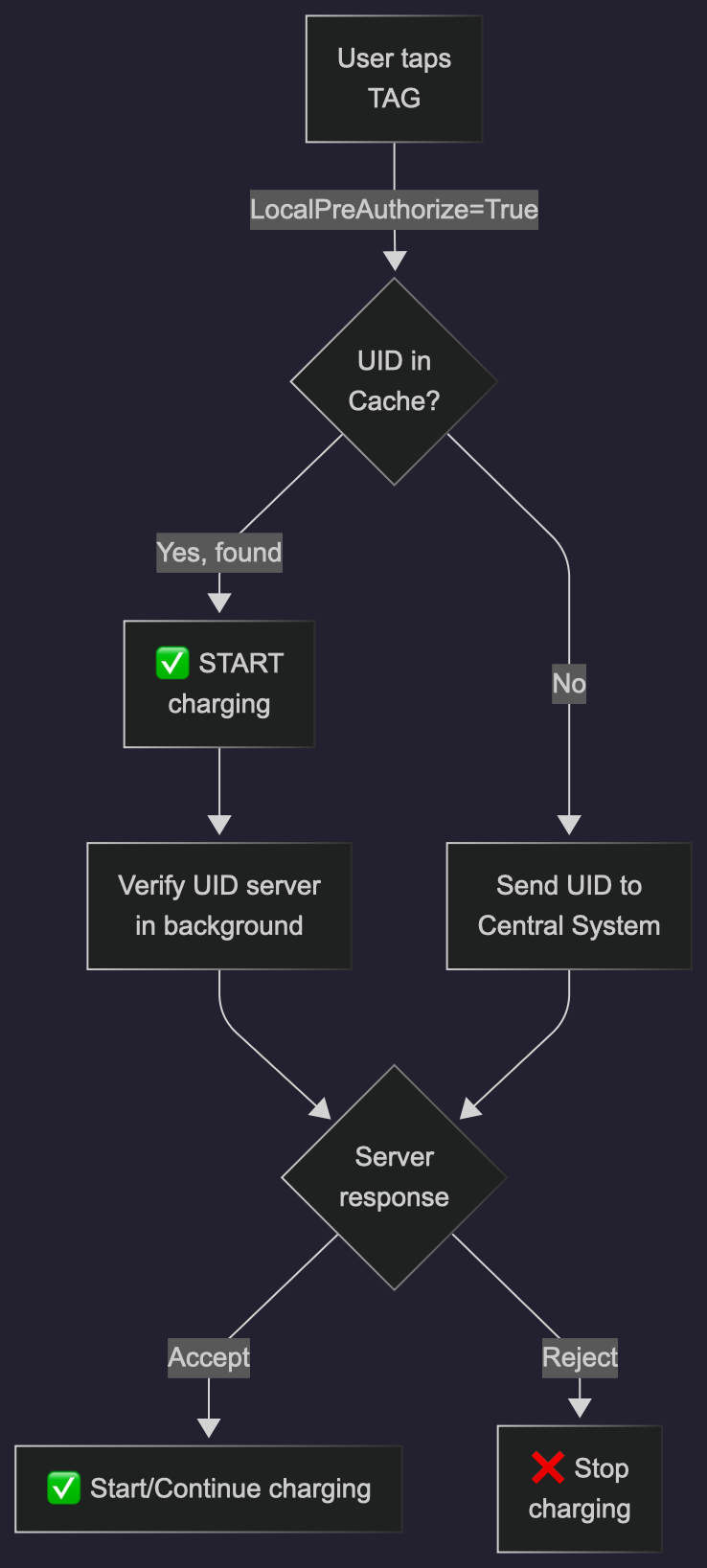

Fast Track Mode (LocalPreAuthorize = True)#

../_images/PreAuthOn.png

Image 3: Local + Remote Authorization Flow#

Effect: Known users get instant response (fast UX), but system verifies with server. If server disagrees later, charging stops.

Decision Table: When Does Charging Start?#

Charger is OFFLINE#

LocalAuthorizeOffline

List Enabled

Cache Enabled

Result

OFF

-

-

❌ No charging

ON

OFF

OFF

❌ No charging

ON

ON

OFF

✅ Charging if on List

ON

OFF

ON

✅ Charging if seen before

ON

ON

ON

✅ Charging if on List OR seen before

Charger is ONLINE#

LocalPreAuthorize

Result

OFF

Server decides for every user

ON

Known cached users start immediately; server verifies in background

Practical Scenarios#

Scenario 1: Always Online, Full Server Control#

Use if: Charger always has internet, you want real-time control

LocalAuthorizeOffline: OFF
LocalAuthListEnabled: OFF
AuthorizationCacheEnabled: OFF
LocalPreAuthorize: OFF

Behavior: Every user queried to server in real-time. No offline fallback.

Scenario 2: Offline-Ready with Fixed User List#

Use if: Charger may go offline, you have a fixed set of approved users

LocalAuthorizeOffline: ON
LocalAuthListEnabled: ON
AuthorizationCacheEnabled: OFF
LocalPreAuthorize: OFF

Behavior:

  • Offline: Only users on your approved list can charge

  • Online: Server validates, but your list takes priority for conflicts

  • Cache not used

Scenario 3: Fast-Track for Frequent Users#

Use if: High-traffic location, want instant response for regular users

LocalAuthorizeOffline: ON
LocalAuthListEnabled: ON
AuthorizationCacheEnabled: ON
LocalPreAuthorize: ON

Behavior:

  • Offline: Uses both approved list and previous users

  • Online: Frequent users charge instantly (from cache), new users go to server

  • System learns over time

Scenario 4: Graceful Offline, Open Network#

Use if: Can charge unknown users offline (verify when back online)

LocalAuthorizeOffline: ON
LocalAuthListEnabled: OFF
AuthorizationCacheEnabled: ON
LocalPreAuthorize: OFF

Behavior:

  • Offline: Anyone can charge (optimistic)

  • Online: Validates everyone. You decide what to do if server says someone shouldn’t have charged

Special Cases#

What if Local List and Server Disagree?#

If a user is approved locally but server rejects them:

  • Charger reports the conflict to your system

  • Action depends on your policy (typically: charger pauses charging, flags for review)

Unknown Users Offline#

Option A: AllowOfflineTxForUnknownId = False (Safe mode)

  • Only known users can charge offline

Option B: AllowOfflineTxForUnknownId = True (Optimistic mode)

  • Unknown users can charge offline

  • When back online, server validates

  • If validation fails, you choose:

    • Hard stop: Immediately stop charging

    • Soft stop: Limit their energy (e.g., max 1 kWh)

Troubleshooting#

Issue

Check

Users rejected offline despite being approved

Is LocalAuthorizeOffline = True? Is at least one source enabled?

Seems too slow to authenticate

Try LocalPreAuthorize = True to cache known users

Same user approved locally but rejected by server

Check if Local List needs updating from server

Charger has been offline too long, cache entries stale

Monitor for old cache entries; periodic sync needed

Summary#

  • Offline: Needs LocalAuthorizeOffline = True + at least one source (List or Cache)

  • Online Standard: Server validates each user

  • Online Fast-Track: Cache pre-approves known users, server confirms in background

  • Local List: Your fixed approved users, highest priority

  • Cache: Charger’s memory of previous approvals, fallback for offline

  • Conflicts: When Local List and server disagree, charger ask server for confirmation
